Okay, this is a very cutting-edge and highly secure communication scenario concept. Combining "fiber optics" and "drones" to form an encrypted intranet is actually building a "mobile, rapidly deployable high security private network".
The core idea of this system is to build a physically isolated and trusted "backbone network" using fiber optics, provide a mobile and flexible "access network" using drone clusters, and seamlessly and securely integrate the two through powerful encryption technology. **
Below, we will break down the specific assembly steps and key technologies.
###Overview of System Architecture
The entire system can be divided into three core parts:
1. Fiber optic intranet (fixed backbone network): As a high-speed, reliable, and secure communication backbone.
2. * * Drone Cluster (Mobile Access Network) * *: serves as a communication node for rapid deployment and coverage of specific areas.
3. * * Encryption system (soul of the system) * *: runs through the entire network to ensure end-to-end data security.
The operation process and encryption logic of the entire system are shown in the following figure:
Encrypted Fiber-Optic & UAV Communication System Architecture
| Layer / Component | Sub-component | Functional Description | Security & Encryption Mechanism |
|---|---|---|---|
|
Fixed Infrastructure (Command Core) |
Command and Control Center (A1) | The "brain" of the system, responsible for global monitoring, decision-making, and task scheduling. | Generates and distributes the system root key, serving as the trust anchor for the entire system. |
| Encryptor/HSM (A2) | The "vault" of the system, responsible for generating, storing, and managing top-level root keys and digital certificates. | Receives commands and provides high-strength cryptographic services for the entire network. | |
|
Fiber-Optic Fixed Backbone (High-Speed Artery) |
Fiber-Optic Link (B1) | The physical foundation connecting fixed nodes, providing a high-bandwidth, low-latency, and physically isolated transmission channel. | Uses MACsec/IPsec encryption to protect data transmitted over the link, preventing eavesdropping. |
|
UAV Mobile Access Network (Flexible Extension) |
Drone Cluster Backbone (C1) | A mobile ad-hoc network formed by multiple UAVs via wireless links, providing flexible and rapidly deployable communication relay. | Uses high-grade IPsec/Mesh Encryption to secure wireless links between drones. |
| End-User Access (C2) | Provides the final wireless network access service for ground end-users (e.g., laptops, mobile phones). | Uses WPA3/Custom Encryption protocols to authenticate and encrypt the user access link, preventing unauthorized access. |
System Workflow & Interactions
| Process Sequence | Interaction Process | Security Implication |
|---|---|---|
| 1 |
Fixed Infrastructure -> Fiber Backbone The Encryptor/HSM pre-configures or updates keys for the drones via the fiber backbone. |
Leverages the established secure fiber channel to distribute keys securely to mobile nodes, forming the basis of trust transfer. |
| 2 |
Fiber Backbone -> UAV Cluster Secure keys are injected into the drone cluster, achieving secure synchronization with the fixed network. |
The mobile network attains the same security level as the fixed network, enabling the expansion of the "encryption domain." |
| 3 |
UAV Cluster -> End Users The drone cluster provides temporary or mobile network coverage for ground users. |
Delivers secure communication capability to the end users, completing the secure "last-mile" access. |
###Specific steps and technical implementation
####Phase 1: Fixed infrastructure construction (fiber optic intranet)
This is the command center and trust root of the entire system.
1. * * Building a fiber optic network * *:
*Lay optical fibers between the command center, data center, and various fixed bases to form a physically isolated closed network. **Physical isolation itself is one of the highest level security measures. **
2. Implement fiber optic link encryption:
** * Technical selection * *: * * MACsec (IEEE 802.1AE) * *. This is the most suitable technology for protecting fiber optic links between adjacent network devices, such as switches.
** * Operation * *: Enable and configure MACsec on all fiber connected network devices (switches, routers). It will provide authentication and encryption for each fiber optic link to prevent "wire tapping" on the link.
3. * * Establish network core encryption * *:
** * Technical selection * *: * * IPSec * *.
** * Operation * *: Establish IPsec tunnels (usually using tunneling mode) between network nodes located in different geographical locations, such as command center routers and base routers. Even if the data spans multiple intermediate nodes, end-to-end confidentiality and integrity can be guaranteed.
4. * * Deploy Key Management Center * *:
*Deploy hardware security modules (HSM) or advanced encryption machines in the core command center. This is the 'trust anchor' of the entire system, used to generate, store, and manage the root keys and digital certificates required for the entire network.
####Phase 2: Mobile Node Integration (UAV Cluster)

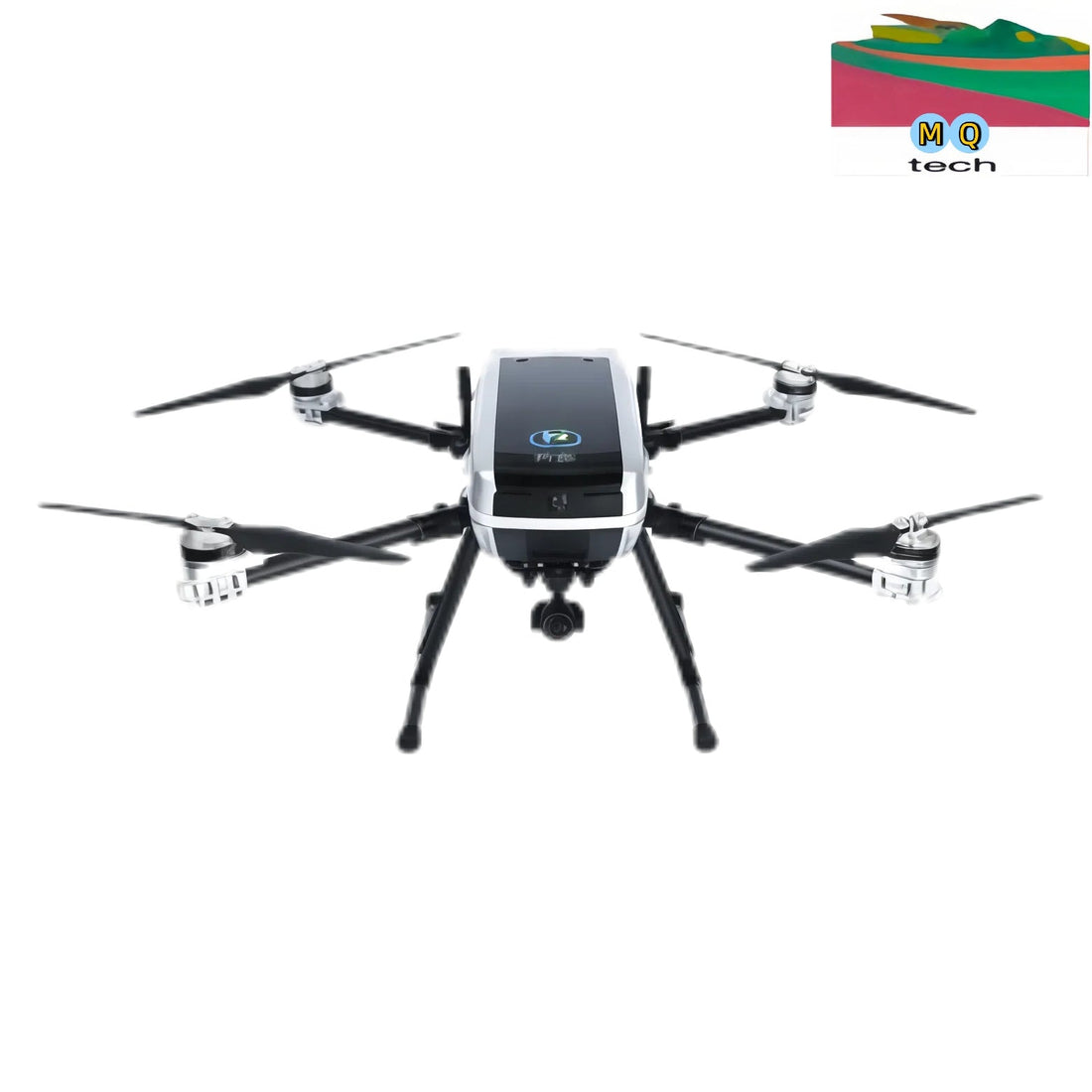

Drones play two roles here: relay nodes and access points.
1. * * UAV communication payload * *:
*Drones need to carry two main communication devices:
*Laser Communication Terminal (optional, but safer): Used to establish Free Space Optical Communication (FSO) links between drones and fixed ground stations or other drones. This is equivalent to 'fiber optic cables in the air', which are extremely difficult to intercept and interfere with.
*RF radio stations (such as COFDM and Mesh radio stations) are used to establish wireless Mesh networks between drones and between drones and ground user terminals.
2. * * Form an aerial Mesh network * *:
*Drones automatically form a Mobile Ad Hoc Network (MANET) through radio frequency or laser links. In this network, each drone is a node that can automatically find and maintain routes to other drones and return to ground stations.
####Phase 3: Encryption Fusion and Secure Access (the most critical step)
This is the process of securely "bonding" fixed networks and mobile networks together.
1. * * Establish a secure feedback link * *:
*Scenario: Several drones form a Mesh network in remote areas and need to transmit data back to a command center tens of kilometers away.
** * Operation * *: Designate one or more drones as "return nodes" and establish a connection with the ground station through laser or directional radio frequency.
*Encryption Implementation: Establish an IPsec VPN tunnel on this "air ground" return link. One end of this tunnel is on the relay communication equipment of the drone, and the other end is on the router of the ground station. In this way, the data of the entire aerial Mesh network is already encrypted and considered trusted traffic when it enters the fixed fiber network.
2. * * Internal encryption of drone network * *:
*Mesh link encryption: Wireless Mesh network links between drones must be encrypted. Use the built-in AES-256 encryption function of the radio station, or run IPsec on its upper layer. All drones share a pre configured key or engage in key negotiation through a lightweight key management protocol.
*User access encryption: Ground users (such as soldiers and scouts) connect to Wi Fi or cellular signals provided by drones through laptops or handheld terminals.
** * Technology * *: Use * * WPA3 Enterprise * * (requires authentication server) or stricter * * custom encryption protocol * *.
** * Operation * *: Users need to authenticate their identity before accessing the drone network. Afterwards, all user data will be aggregated at the drone node and transmitted back through the aforementioned IPsec tunnel.
3. * * End to end encryption (highest security level) * *:
*To provide ultimate protection, end-to-end encryption can be implemented at the application level.
** * Operation * *: The software on the computer in the command center and the user terminal device encrypts the data using * * national encryption algorithm * * or * * AES-GCM * * algorithm before sending it. In this way, even if the entire communication network is breached, the attacker only obtains ciphertext.
###Summary: The unique advantages of this approach
*High maneuverability: Drones can quickly reach any area and provide temporary network coverage.
*High survivability: Even if some nodes (drones) are destroyed, Mesh networks can automatically reconstruct routes without interruption of communication.
*Physical Security: Fiber optic backbone networks are private, isolated, and extremely difficult to penetrate.
** * Encryption Defense in Depth * *:
*First layer: Fiber link encryption (MACsec).
*Layer 2: Network Backbone Encryption (IPsec).
*Layer 3: Air wireless link encryption (AES/IPsec).
*Layer 4: User Access Authentication and Encryption (WPA3).
** * Fifth layer (optional) * *: Application layer end-to-end encryption.
This "fiber optic drone encrypted intranet" is an ideal solution for high-end scenarios such as emergency communication, military operations, and special field operations, achieving the unity of the three major goals of "security, mobility, and reliability".
---------------------------------------------------
Here are some general professional recommendations for enhancing the security of commercial communications under the premise of legality and compliance:
1. Core principle: Separation and Encryption
Separation of Public and Private: Strictly distinguish between official company email and channels used for highly sensitive communication. The latter should only be used for specific transactions.
End to end encryption: This is the gold standard for modern secure communication. Choose a platform that uses end-to-end encryption technology to ensure that only the sender and recipient can read the information, and even the service provider cannot decrypt it.
2. Professional tool recommendations (use only after understanding and complying with local laws and regulations)
Professional encrypted email service:
ProtonMail: Switzerland is known for its strong privacy protection and end-to-end encryption.
Tutanota: Based in Germany, it provides end-to-end encrypted email and calendar services.
Note: Even when using these services, one should fully understand their terms of service and privacy policy.
Security Collaboration Platform:
Signal: An instant messaging application widely recommended by security experts, providing powerful end-to-end encryption and being open-source.
Keybase: Provides end-to-end encrypted chat and file sharing, and supports powerful public key cryptographic authentication.
3. Operational safety procedures
Pre communication: Through official email or phone, agree with the other party in advance on the encryption channel and verification method to be used (such as confirming the public key fingerprint through other channels).
Content management:
Avoid discussing core secrets in non encrypted official emails.
In encrypted channels, it is also advisable to avoid directly pasting extremely sensitive content. Consider sending the core information in the form of encrypted files (such as creating encrypted containers using VeraCrypt or encrypting documents using PGP), with passwords transmitted through another channel.
---------------
